is an innovative bioactive and biomimetic bone substitute that mirrors the structure of natural bone.
This biomimetic structure of b.Bone promotes new bone formation and remodeling. b.Bone ‘s biomimetic properties facilitate cellular infiltration and vascularization throughout the graft material for natural bone healing, as well as ensuring bio-resorption.
b.Bone is intended for use as a bone graft for voids or gaps that are not intrinsic to the stability of the bony structure.
It is indicated in the treatment of surgically created osseous defects or osseous defects resulting from traumatic injury to the bone.
b.Bone is intended to be implanted into bony voids or gaps of the skeletal system as a bone substitute, in the extremities and pelvis.
b.Bone is an innovative bone substitute that originates from rattan wood which is the only natural material with an internal architecture similar to human bone. The manufacturing processes guarantee the chemical transformation from wood to bone substitute that is safe and biocompatible with the human body.
Benefits
acts as a bridge to bone defect, restores bone, structures and supports bone healing
- b.Bone is biomimetic as it replicates the structure of natural human bone and is progressively replaced by newly formed bone
- b.Bone is bioactive thanks to its unique structural properties which facilitate the population of the scaffold with the body’s bone cells in order to generate new bone formation
- Available in various shapes and sizes to best fit the bone defect and/or orthopaedic fixation systems
- Totally safe and biocompatible
- Vegetal origin, suitable for all patients (1)
(1) b.Bone is intended to be used as a bone substitute in adults. The effect of b.Bone in pediatric patients and in pregnant or breast-feeding women has not been established. Please take into consideration the contraindications listed in the IFUs.
In general
b.Bone™ is intended for use as a bone graft for voids or gaps that are not intrinsic to the stability of the bony structure. It is indicated in the treatment of surgically created osseous defects or osseous defects resulting from traumatic injury to the bone.
b.Bone™ is intended to be implanted into bony voids or gaps of the skeletal system as a bone substitute, in the extremities and pelvis.
Shapes

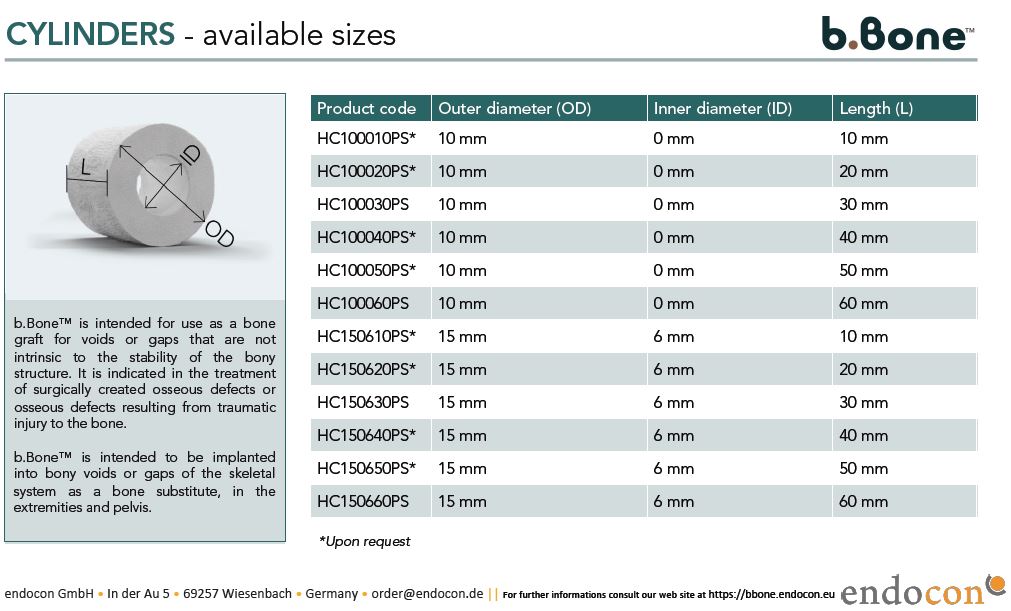

| Cylinders | |||
*More sizes available upon request
For more details/download:
Click on the picture.
|
 |
||
| Product code (standard) | Outer diameter (OD) | Inner diameter (ID) | Length (L) |
| HC100030PS | 10 mm | 0 mm | 30 mm |
| HC100060PS | 10 mm | 0 mm | 60 mm |
| HC150630PS | 15 mm | 6 mm | 30 mm |
| HC150660PS | 15 mm | 6 mm | 60 mm |
| HC201030PS | 20 mm | 10 mm | 30 mm |
| HC201060PS | 20 mm | 10 mm | 60 mm |
| HC251330PS | 25 mm | 13 mm | 30 mm |
| HC251360PS | 25 mm | 13 mm | 60 mm |
| HC301530PS | 30 mm | 15 mm | 30 mm |
| HC301560PS | 30 mm | 15 mm | 60 mm |
| *More sizes upon request available. Cklick on the picture with the table above to see the details. | |||

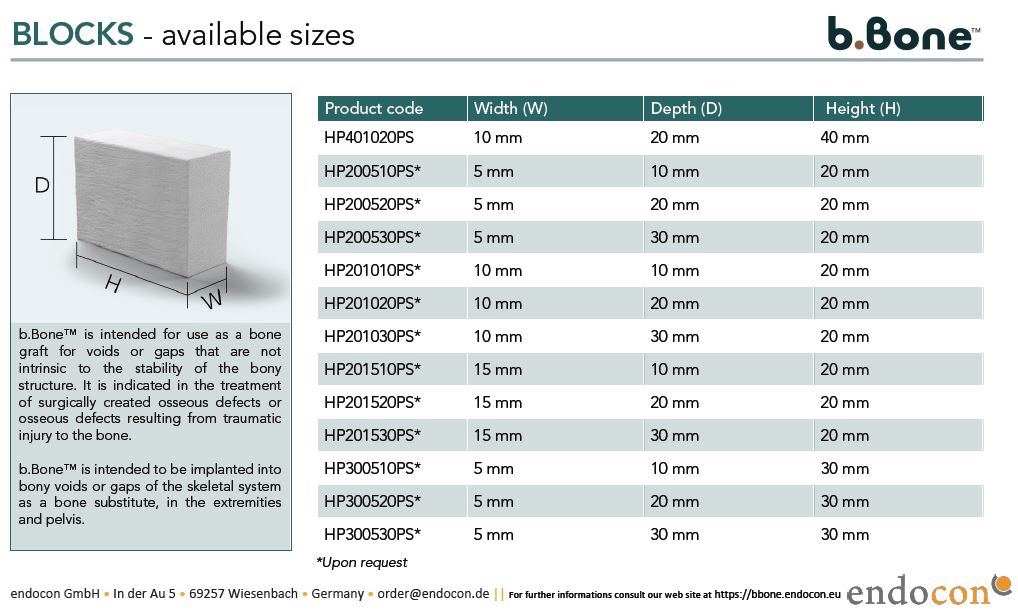

| Blocks | |||
*More sizes available upon request
For more details/download:
Click on the picture.
|
 |
||
| Product code (standard) | Outer diameter (OD) | Inner diameter (ID) | Length (L) |
| HP401020PS | 10 mm | 20 mm | 40 mm |
| *More sizes upon request available. Cklick on the picture with the table above to see the details. | |||

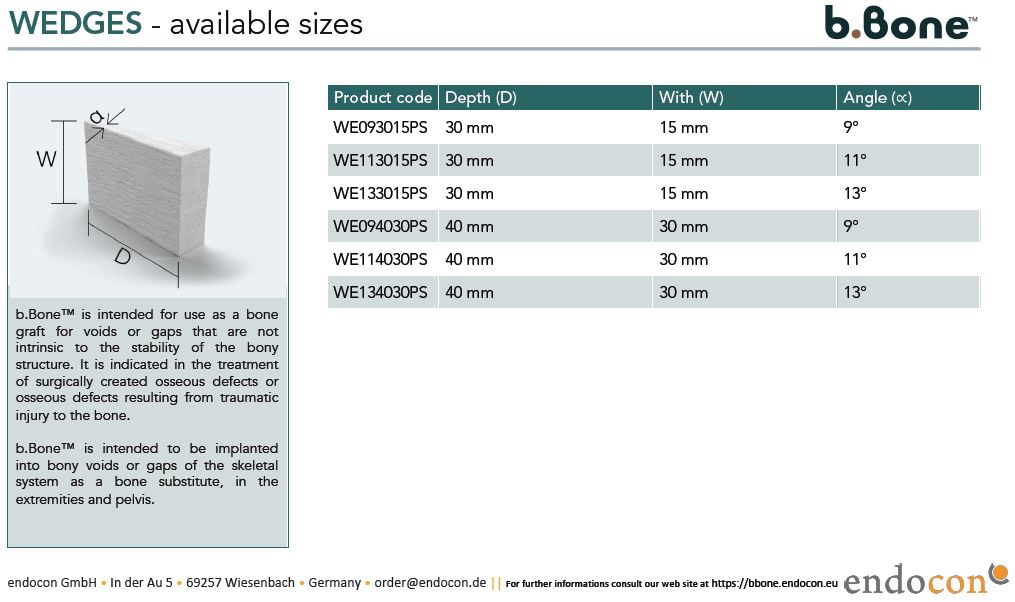

| Wedges | |||
For more details/download:
Click on the picture.
|
 |
||
| Product code (standard) | Outer diameter (OD) | Inner diameter (ID) | Angle (α) |
| WE093015PS | 30 mm | 15 mm | 9° |
| WE113015PS | 30 mm | 15 mm | 11° |
| WE113015PS | 30 mm | 15 mm | 13° |
| WE094030PS | 40 mm | 30 mm | 9° |
| WE114030PS | 40 mm | 30 mm | 11° |
| WE134030PS | 40 mm | 30 mm | 13° |

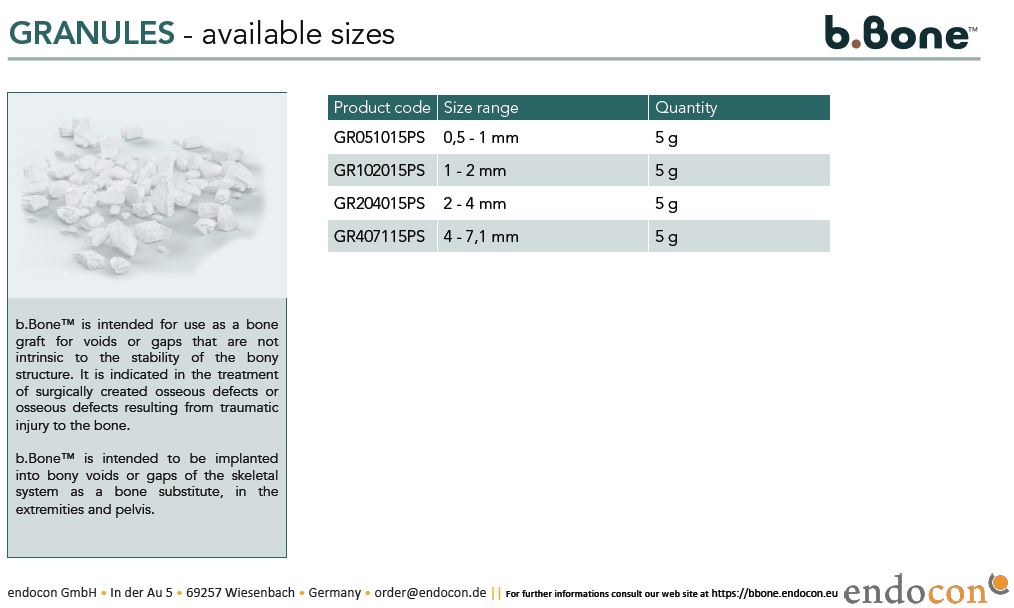

| Granules | |||
For more details/download:
Click on the picture.
|
 |
||
| Product code (standard) | Size range | Quantity | |
| GR051015PS | 0,5 - 1 mm | 5 g | |
| GR102015PS | 1 - 2 mm | 5 g | |
| GR204015PS | 2 - 4 mm | 5 g | |
| GR407115PS | 4 - 7,1 mm | 5 g | |
