endoCupcut - Acetabular cup cutter

Precise and comfortable revision of cementless acetabular cups of all sizes with one single cutting system.

In our development of the latest generation of instruments for arthroplasty, we have focused on the specific requirements of surgeons and orthopaedic specialists: an effective, fast and continuous operation and healing process.

endocon Revisions-Operationen der Hüftpfannenendoprothetik Hüfte mit Hüftpfannenschneider

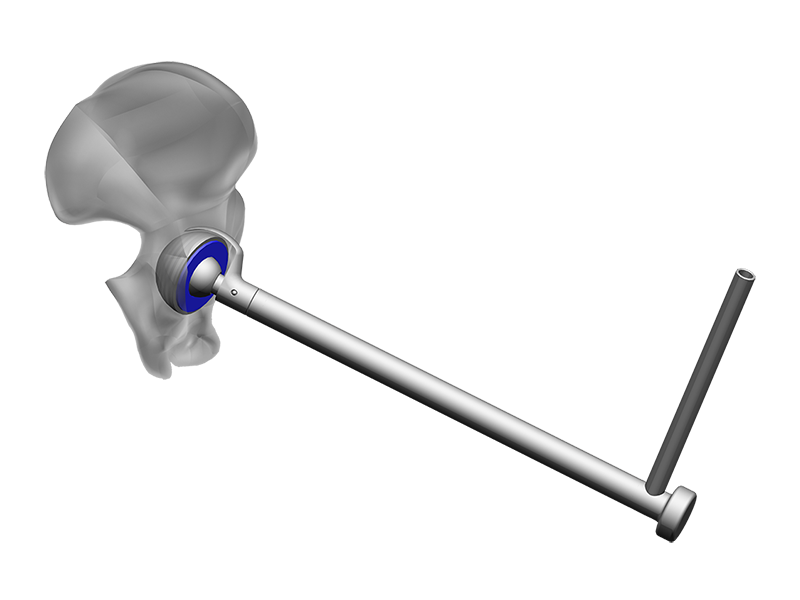

Cup extraction with endoCupcut - First application for the surgeon
endocon Revisions-Operationen der Hüftpfannenendoprothetik Hüfte mit Hüftpfannenschneider

Revision surgery oh the hip arthroplasty are better to plan and safe.

  • Reduced operation time through fast and safe loosening of the acetabular cup
  • Optimal variability in one instrument, combinable with up to 15 different blades

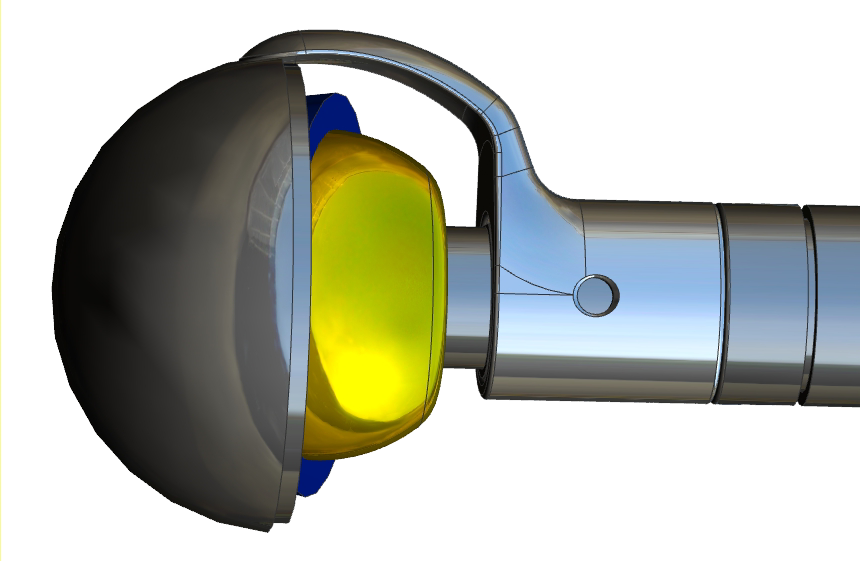

  • Precise cutting along the edge of the cup, without stressing the bone
  • High-fitting accuracy of the blades through a modular system of ball-shaped heads
  • Wear-resistant, reusable blades for multiple operations

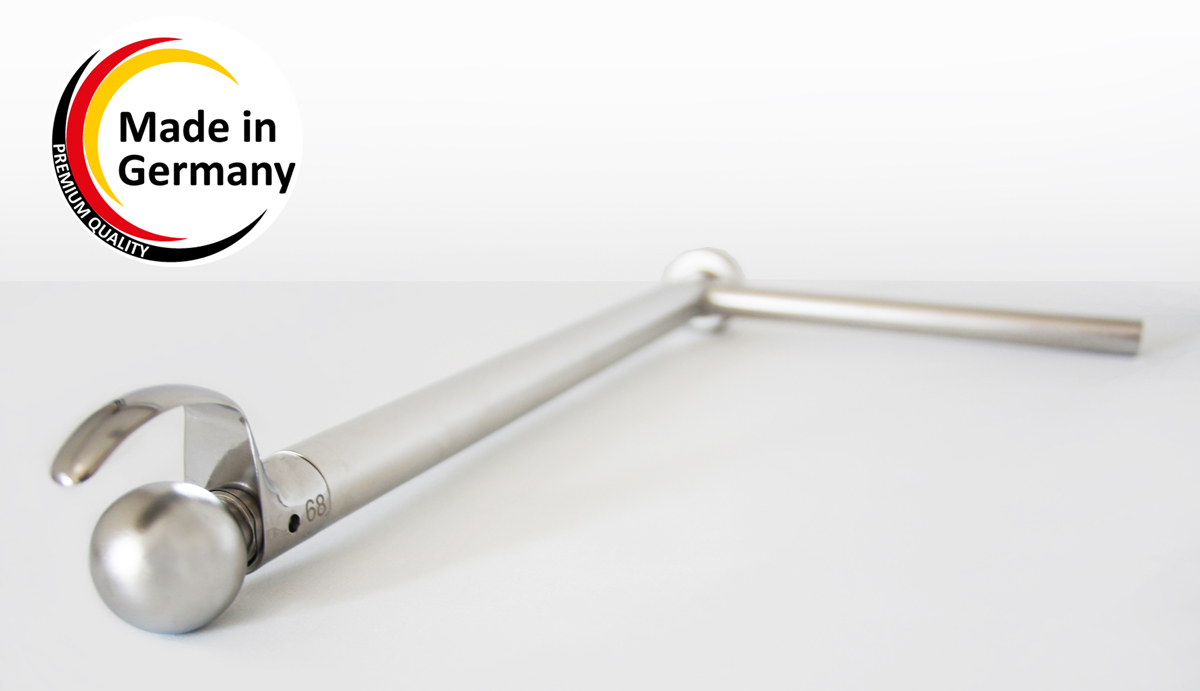

  • Reusable instrument in high-quality finishing, reliable and easy to sterilise
  • Perfect fitting of the ball-shaped heads in a width of 38-60 mm
  • Supports an accelerated healing process

The modular design of the acetabular cup cutter offers you the best instrument for each application.

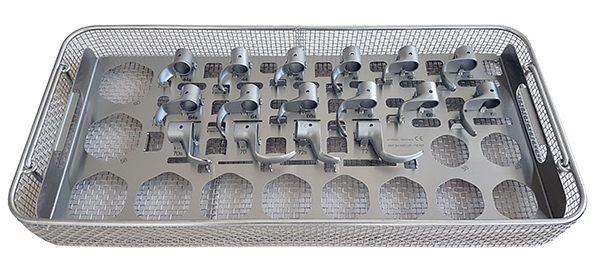

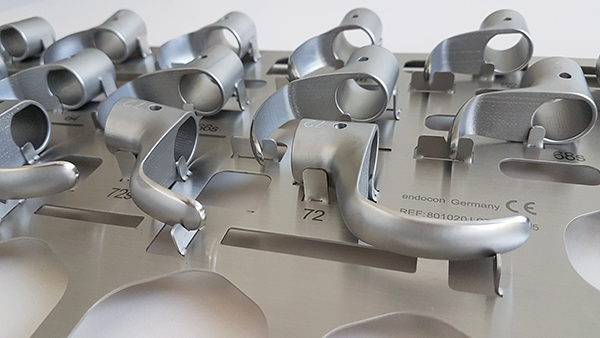

  • Sophisticated and functional tray insert for the storage of the blades
  • Balanced weight distribution in the tray for safe and hygienic handling
  • Accelerates and increases the efficiency of the op revision time
endocon Revisions-Operationen der Hüftpfannenendoprothetik Hüfte mit Hüftpfannenschneider
Options All our systems are also available as a loan system. Ask us!
endoCupcut Set Small endoCupcut Set Professional Item No. 780992 - endoCupcut Set Professional
Main tool endoCupcut; 3 ball heads 28, 32 and 36mm; 15 short blades and 15 long blades size 44 up to 72mm; Set ball-heads for surface replacement with 12 heads 38 up to 60mm; Spread over 2 trays, both with sieve insert and basket.
endoCupcut Set Small endoCupcut Set Medium Item No. 780990 - endoCupcut Set Medium
Main tool endoCupcut; 3 ball heads 28, 32 and 36mm; 15 short blades and 15 long blades size 44 up to 72mm; Spread over 2 trays, both with sieve insert and basket.

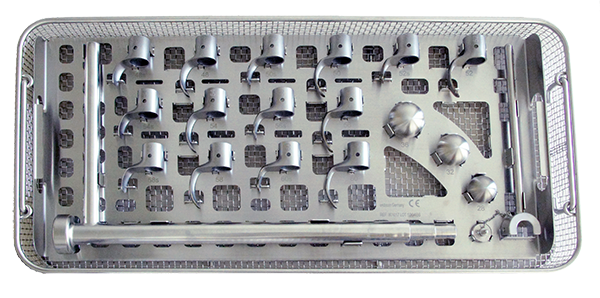

endoCupcut Set Small   Item No. 780994 - endoCupcut Set Small
Main tool endoCupcut; 3 ball heads 28, 32 and 36mm; 7 short blades and 7 long blades size 48 up to 60mm; Tray with sieve insert and basket.

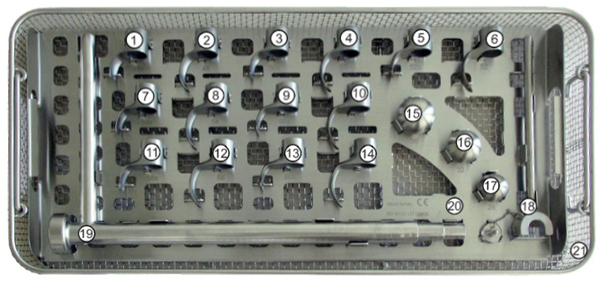

Single and spare parts - tray 1
endoCupcut Single and spare part - tray 1
Pos. Art. no. Description Pos. Art. no. Description
1 780969 Blade size 48S (short) 12 780944 Blade size 58 (long)
2 780939 Blade size 48 (long) 13 780975 Blade size 60S (short)
3 780970 Blade size 50S (short) 14 780945 Blade size 60 (long)
4 780940 Blade size 50 (long) 15 780919 Ball head Ø 36mm
5 780971 Blade size 52S (short) 16 780932 Ball head Ø 32mm
6 780941 Blade size 52 (long) 17 780931 Ball head Ø 28mm
7 780972 Blade size 54S (short) 18 780959 Disassembling handle
8 780942 Blade size 54 (long) 19 780930 Handle endoCupcut
9 780973 Blade size 56S (short) 20 801017 endoCupcut tray insert
10 780943 Blade size 56 (long) 21 801001 Tray 1/1 size Aesculap, 60mm
11 780974 Blade size 58S (short)

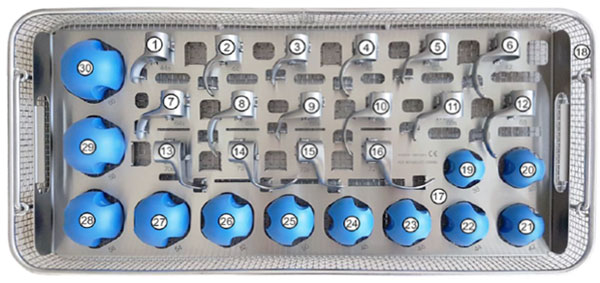

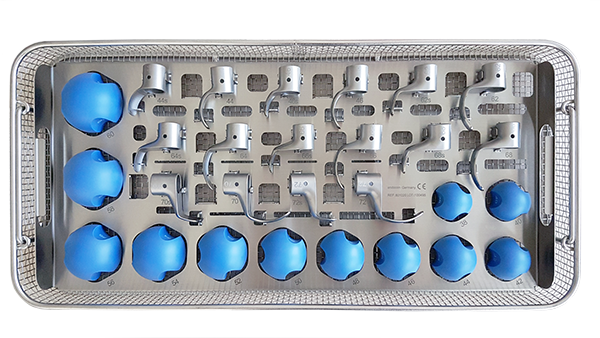

Single and spare parts - tray 2
endoCupcut Ersatzteile Sieb 2
Pos. Art. no. Description Pos. Art. no. Description
1 780967 Blade size 44S (short) 16 780951 Blade size 72 (lang)
2 780937 Blade size 44 (lang) 17 801020 endoCupcut tray insert
3 780968 Blade size 46S (short) 18 801001 Tray 1/1 size Aesculap, 60mm
4 780938 Blade size 46 (long) 19 780884 Ball head Ø 38
5 780976 Blade size 62S (short) 20 780885 Ball head Ø 40
6 780946 Blade size 62 (long) 21 780886 Ball head Ø 42
7 780977 Blade size 64S (short) 22 780887 Ball head Ø 44
8 780947 Blade size 64 (long) 23 780888 Ball head Ø 46
9 780978 Blade size 66S (short) 24 780889 Ball head Ø 48
10 780948 Blade size 66 (long) 25 780890 Ball head Ø 50
11 780979 Blade size 68S (short) 26 780891 Ball head Ø 52
12 780949 Blade size 68 (long) 27 780892 Ball head Ø 54
13 780980 Blade size 70S (short) 28 780893 Ball head Ø 56
14 780950 Blade size 70 (long) 29 780894 Ball head Ø 58
15 780981 Blade size 72S (short) 30 780895 Ball head Ø 60

TCT Healthcare Application Award 2018 - Finalist

TCT Awards 2018 Healthcare application Finalist - endoCupcut

endoCupcut has been nominated as a finalist at theHealthcare Application Award - TCT Awards 2018.
The final decision and winner announcement will occur on September 26. at the Hilton Birmingham Metropole.
